CPLR

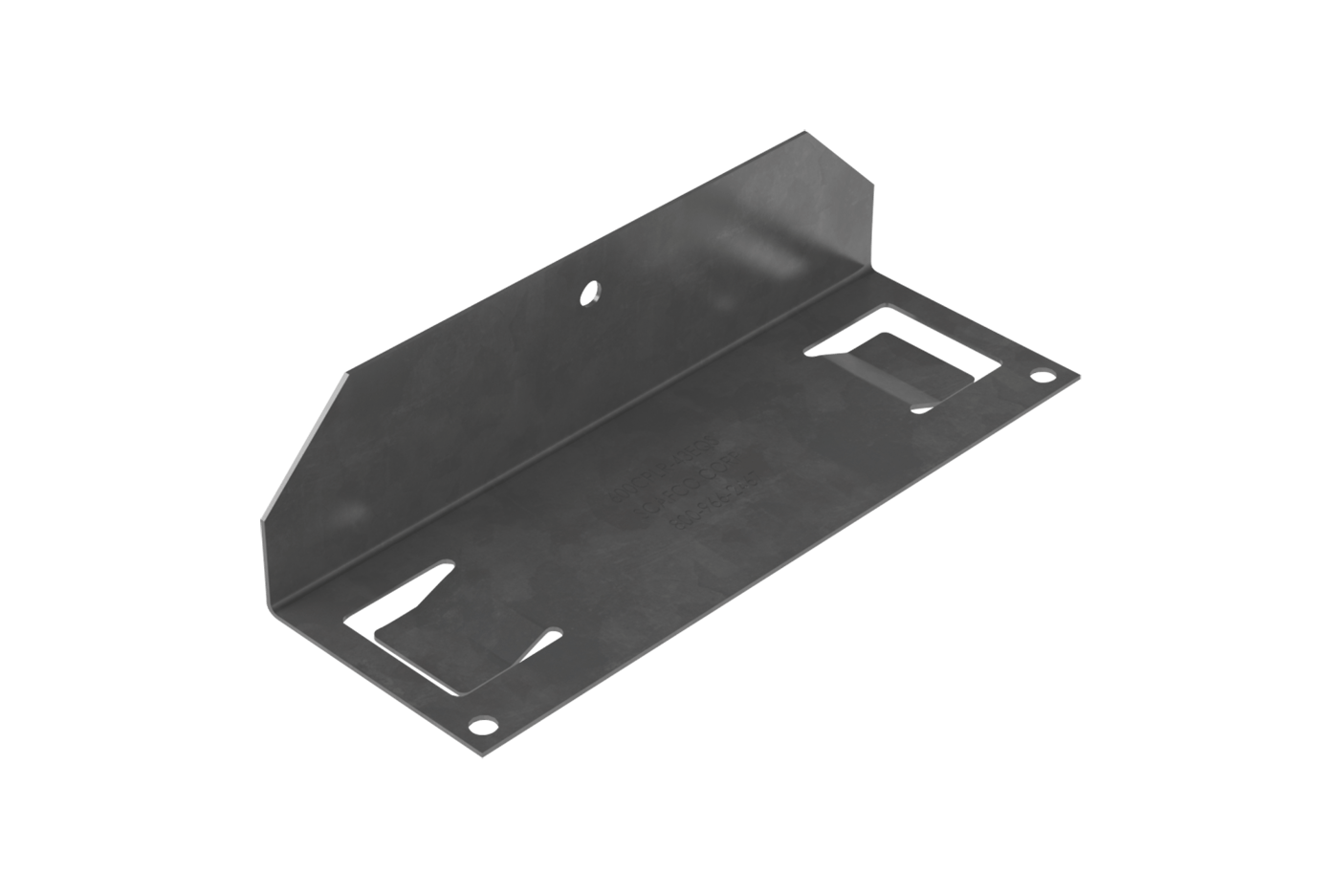

Crippler Clip ©

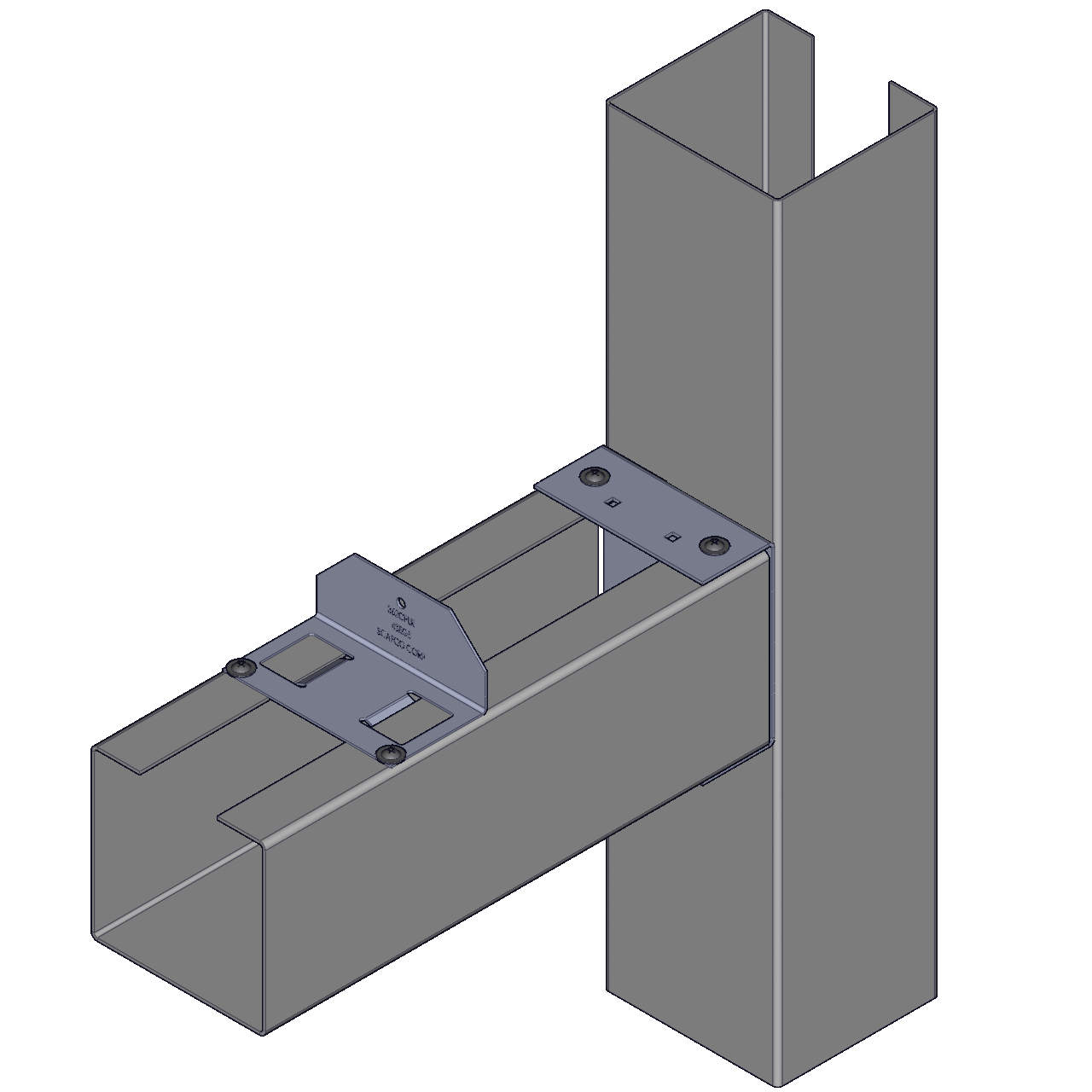

The CPLR Crippler Clip© is used to provide a single attachment from your Priceless HD Header© to a cripple stud, eliminating the need to install the oversized track section.
The tabs within the Crippler Clip allow for easy attachment to the header with a simple slide-in-and-twist motion, locking the clip in place. The Crippler Clip also mounts flush with the header, making for clean drywall installation with zero build-up. The use of the Crippler Clip with the Flush Mount Clip provides the industry’s only true flush header assembly.
Features
- Provides a completely flush header system
- Eliminates track section
- Exposed cavity – insulation can be installed by insulation contractor
- Pre-punched guide holes
- Unique alignment tabs
- Mill certified steel
- ASTM A653/A653M
- 33EQD and 43EQS — 57 ksi yield strength, 65 ksi tensile strength, G60 galvanized coating
Quantity / Order Information
Interior Crippler
| Part No. | Header Width (in) | Qty / Bucket | Lbs / Bucket |
|---|---|---|---|
| 362CPLR-33EQD | 3 ⅝” | 200 | 15 |
| 400CPLR-33EQD | 4″ | 200 | 17 |
| 550CPLR-33EQD | 5 ½” | 200 | 24 |
| 600CPLR-33EQD | 6″ | 200 | 26 |
Exterior Crippler
| Part No. | Header Width (in) | Qty / Bucket | Lbs / Bucket |
|---|---|---|---|
| 362CPLR-43EQS | 3 ⅝” | 200 | 27 |
| 400CPLR-43EQS | 4″ | 100 | 15 |
| 550CPLR-43EQS | 5 ½” | 100 | 21 |
| 600CPLR-43EQS | 6″ | 100 | 23 |
| 800CPLR-43EQS | 8″ | 100 | 31 |
