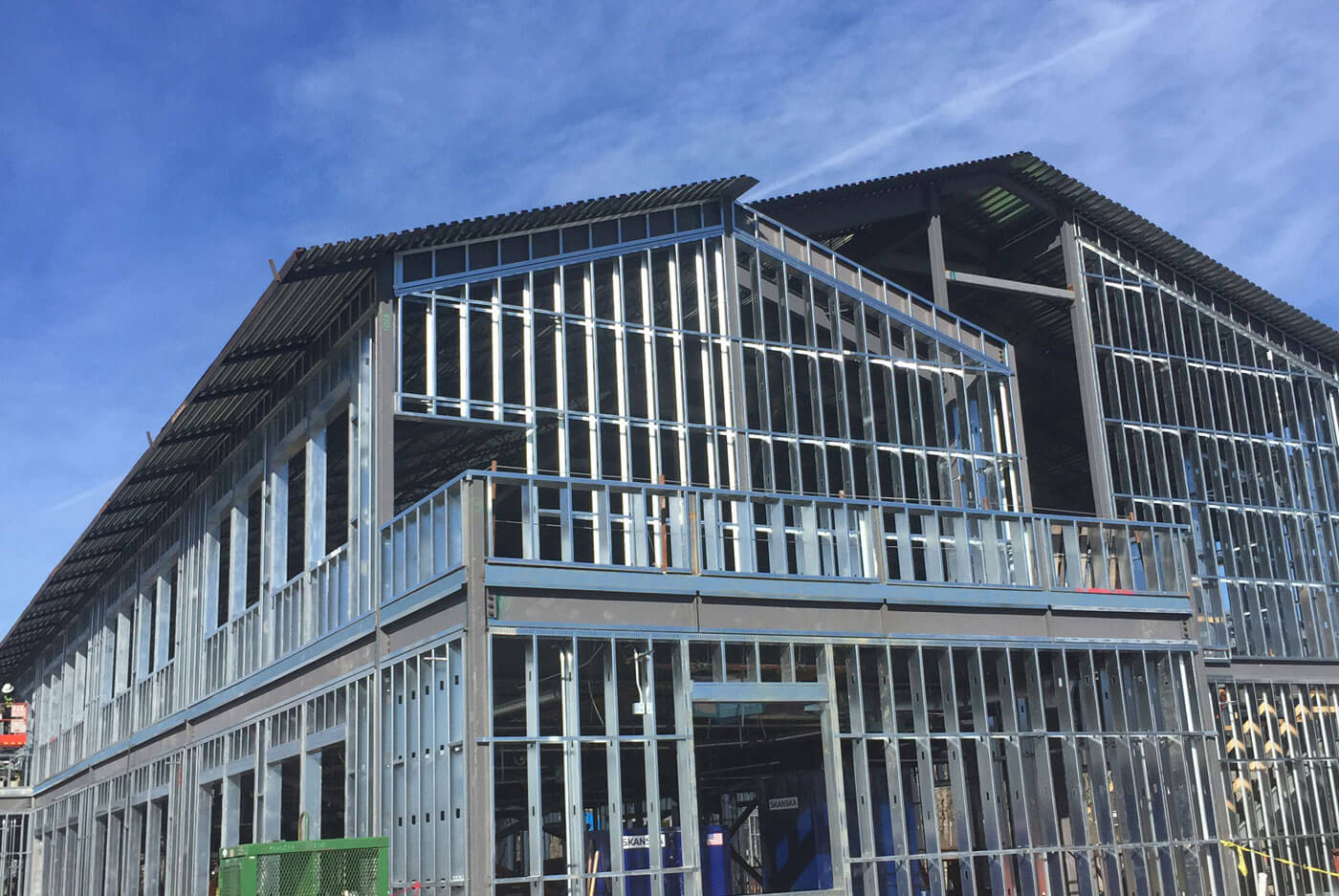

Steel Framing
Studs and Track
When choosing a supplier, quality materials are a top priority. That’s why SCAFCO steel framing products are manufactured from 100% prime mill certified steel. SCAFCO’s products exceed industry standards as they are manufactured from 57 ksi steel in place of 50 ksi and G90 in place of G60 for 68 mil and heavier.
Applications
- Non-load-bearing exterior curtain walls
- Axial load-bearing interior and exterior walls
- Interior non-load-bearing walls
- Floor joists and headers
- Rafters, purlins, and girts
Steel Framing Sizing
Standard Web Sizes
- 1-5/8″
- 2-1/2″
- 3-1/2″
- 3-5/8″
- 4″
- 5-1/2″
- 6″
- 8″
- 10″
- 12″
- 14″
- 16″
Flange Sizes
- 1-1/4″
- 1-3/8″
- 1-5/8″
- 2″
- 2-1/2″
- 3″
- 3-1/2″
Thicknesses and Coatings
| Steel Framing Thickness Table | |||||
|---|---|---|---|---|---|
| Designation Thickness (mils) | Galvanized Thickness | Reference Only Gauge No | |||
| 18 | G40 | 25 | |||
| 30 | G40 | 20 – Drywall | |||
| 33 | G60 | 20 – Structural | |||
| 43 | G60 | 18 | |||
| 54 | G60 | 16 | |||
| 68 | G90 | 14 | |||
| 97 | G90 | 12 | |||
| 118 | G90 | 10 | |||
