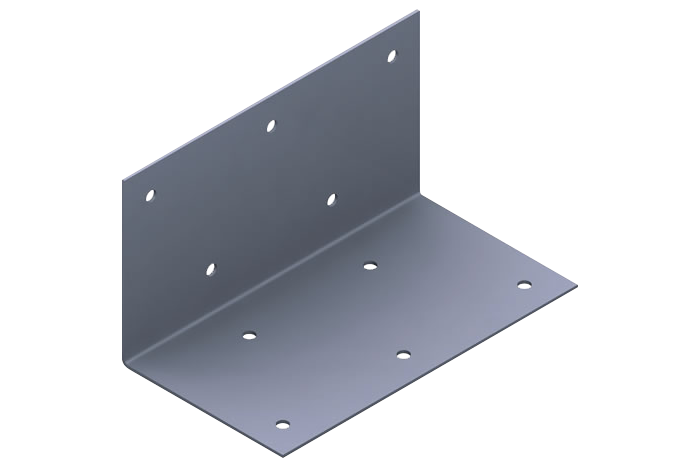

MC
Multi-Use Secure Clip

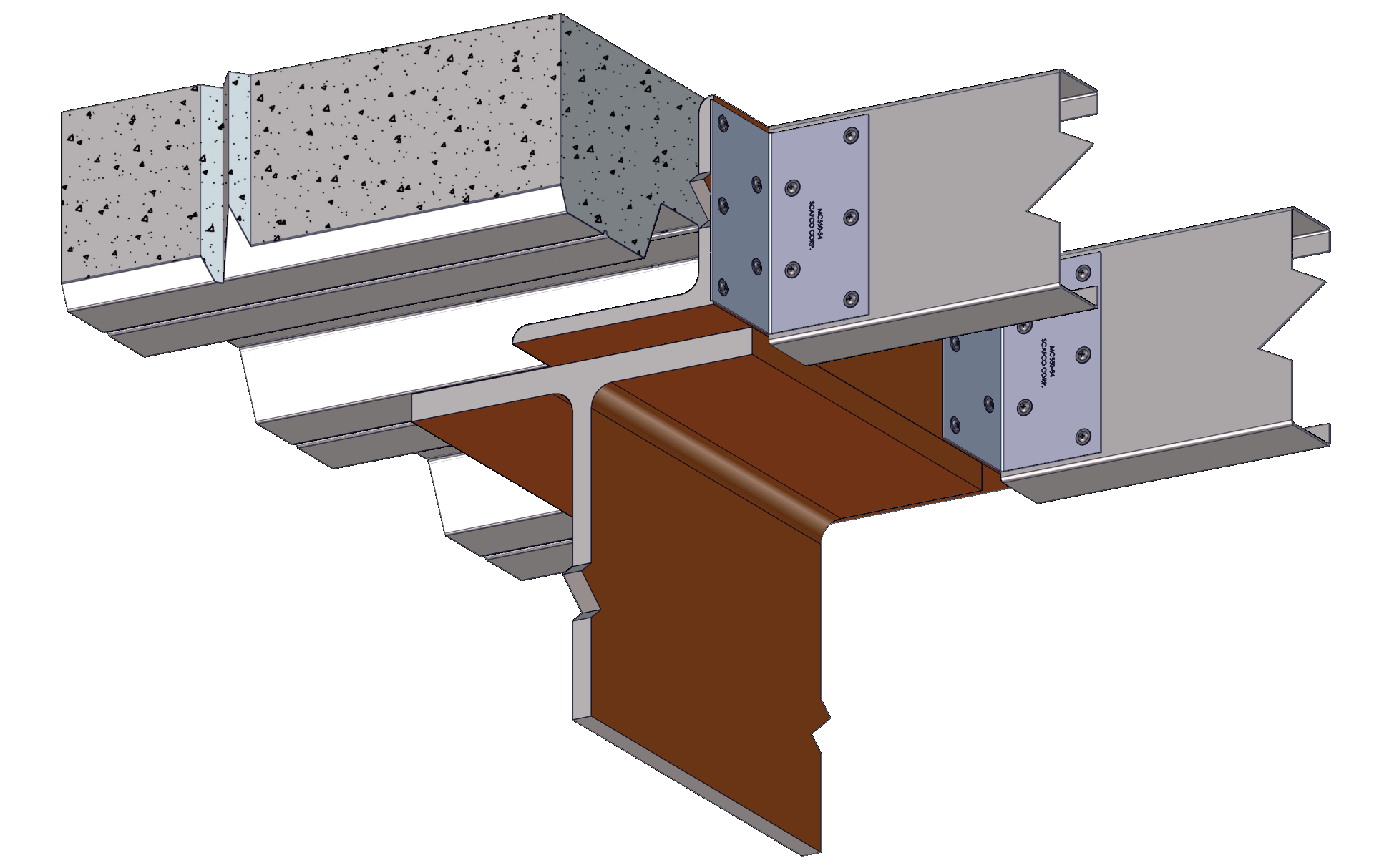

The multi-use secure clip (MC) is used in a variety of different applications, including head of wall, joist connections, securing hips, rafters and trusses, reinforcing header connections, etc. Multi-use secure clip (MC) is constructed with Mill-Certified 50 ksi steel designed to resist vertical and lateral loads. Pre-punched guide holes are provided in each leg, allowing for superior installation efficiency.
Features
- Variety of lengths available
- Loads based on #10 screws
- Pre-punched guide holes
- No labor used cutting scrap or angle
Quantity / Order Information

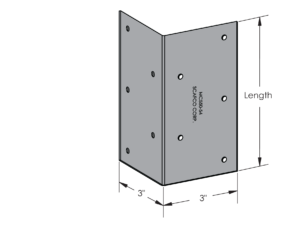

| Model No. | Material Thickness | Length | Qty /Bucket | Lbs /Bucket | |
|---|---|---|---|---|---|
| Mils | Gauge | ||||
| MC350-54 | 54 | 16 | 3 ½” | 100 | 33 |
| MC350-68 | 68 | 14 | 3 ½” | 100 | 41 |
| MC550-54 | 54 | 16 | 5 ½” | 100 | 51 |
| MC550-68 | 68 | 14 | 5 ½” | 75 | 48 |
| MC750-54 | 54 | 16 | 7 ½” | 50 | 35 |
| MC750-68 | 68 | 14 | 7 ½” | 50 | 44 |
| MC950-54 | 54 | 16 | 9 ½” | 50 | 44 |
| MC950-68 | 68 | 14 | 9 ½” | 50 | 55 |
