MA
Multi-Use Secure Clip

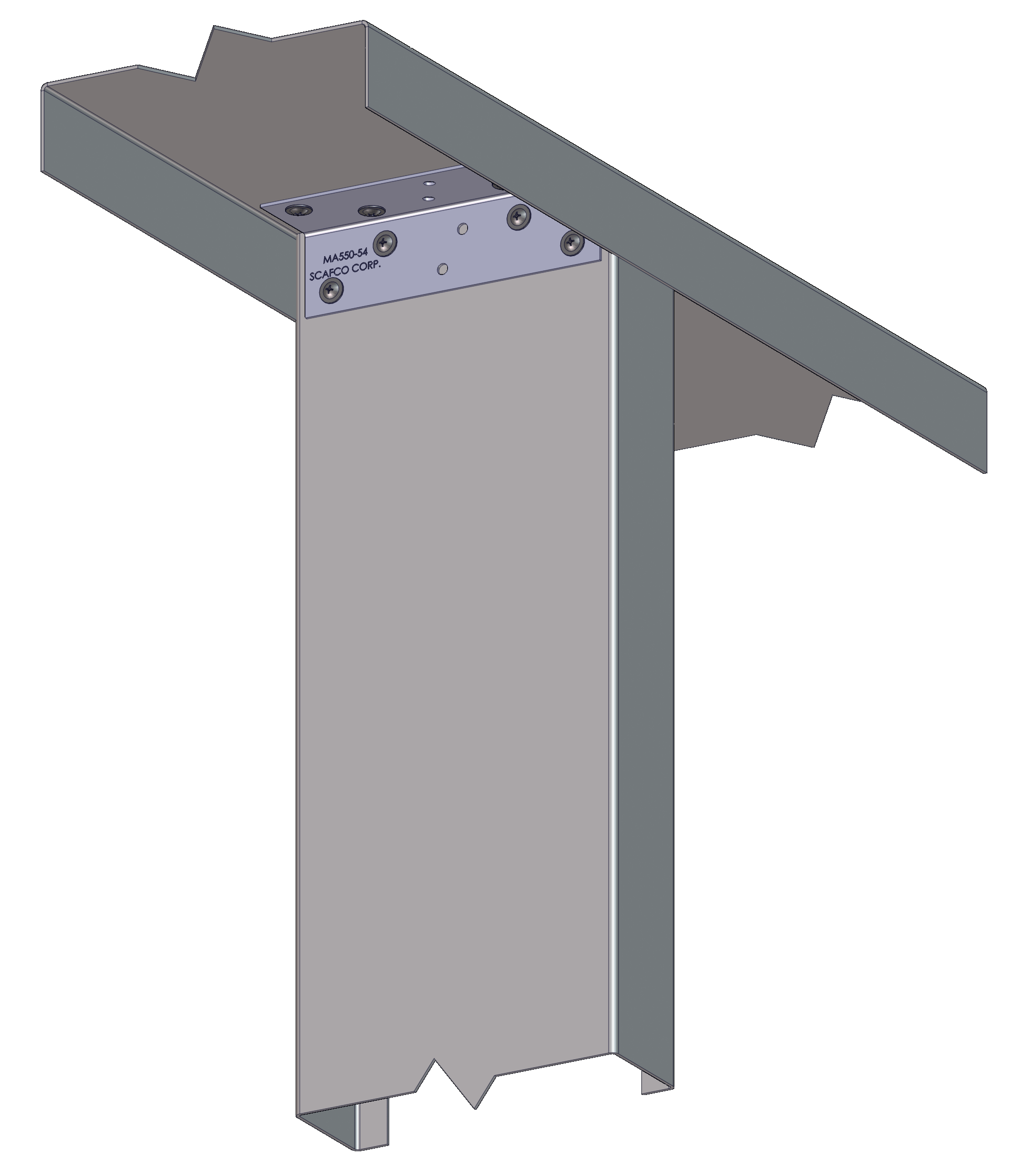

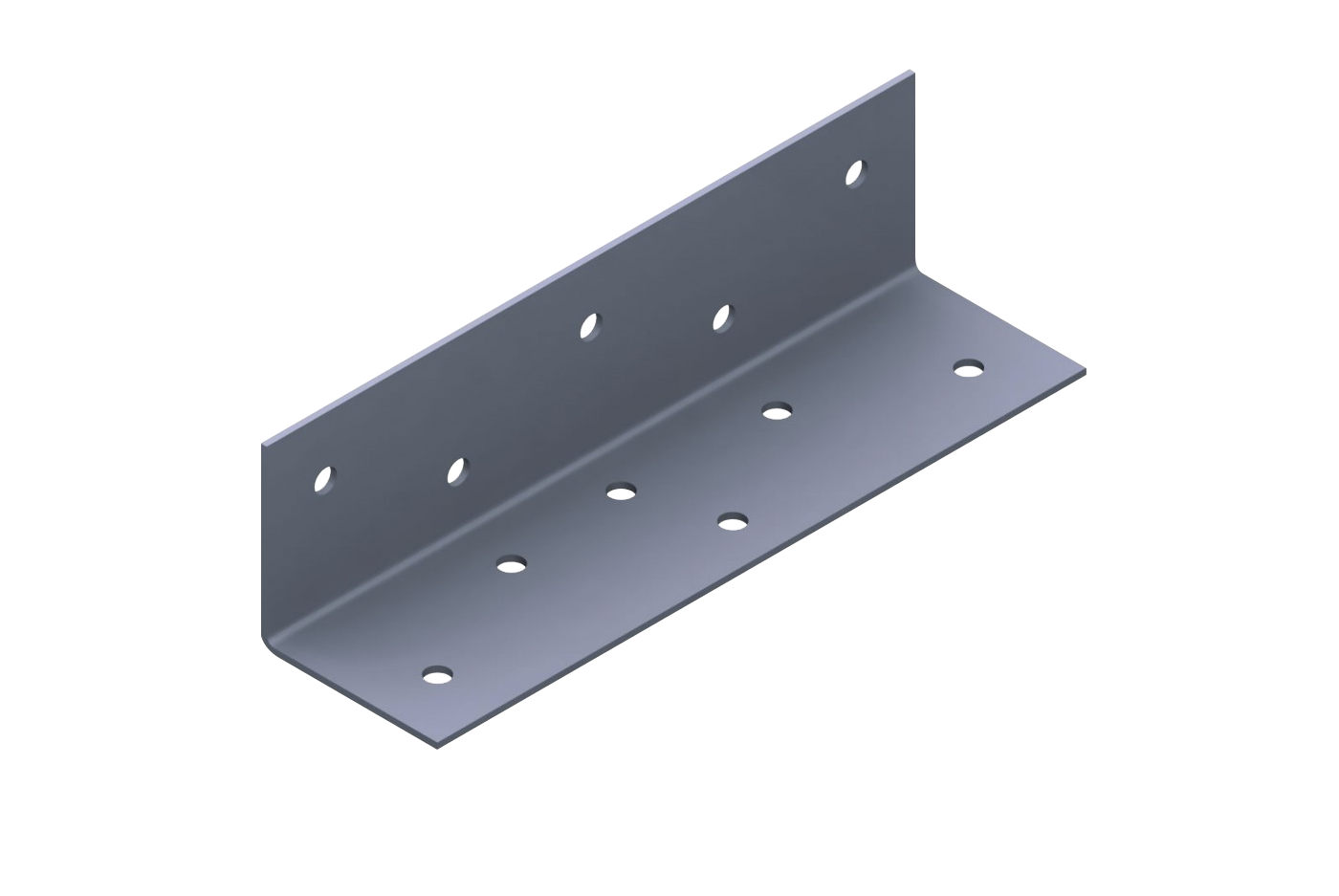

The multi-use secure clip (MA) is used in a variety of different applications, including head-of-wall, joist connections, securing hips, rafters and trusses, reinforcing header connections, bridging, etc. It is produced from mill certified 57 ksi steel and is designed to resist vertical and lateral loads. Pre-punched guide holes are provided in each leg for superior installation efficiency.
Features
- Variety of lengths available
- Loads based on #10 screws

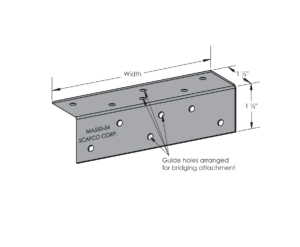

- Pre-punched guide holes
- No labor used cutting scrap or angle
Quantity / Order Information
| Model No. | Material Thickness | Length | Qty /Bucket | Lbs /Bucket | |
|---|---|---|---|---|---|
| Mils | Gauge | ||||
| MA350-54 | 54 | 16 | 3 ½” | 100 | 17 |
| MA350-68 | 68 | 14 | 3 ½” | 100 | 21 |
| MA550-54 | 54 | 16 | 5 ½” | 100 | 26 |
| MA550-68 | 68 | 14 | 5 ½” | 100 | 32 |
| MA750-54 | 54 | 16 | 7 ½” | 100 | 35 |
| MA750-68 | 68 | 14 | 7 ½” | 100 | 44 |
| MA950-54 | 54 | 16 | 9 ½” | 100 | 44 |
| MA950-68 | 68 | 14 | 9 ½” | 100 | 55 |
