HD Headers

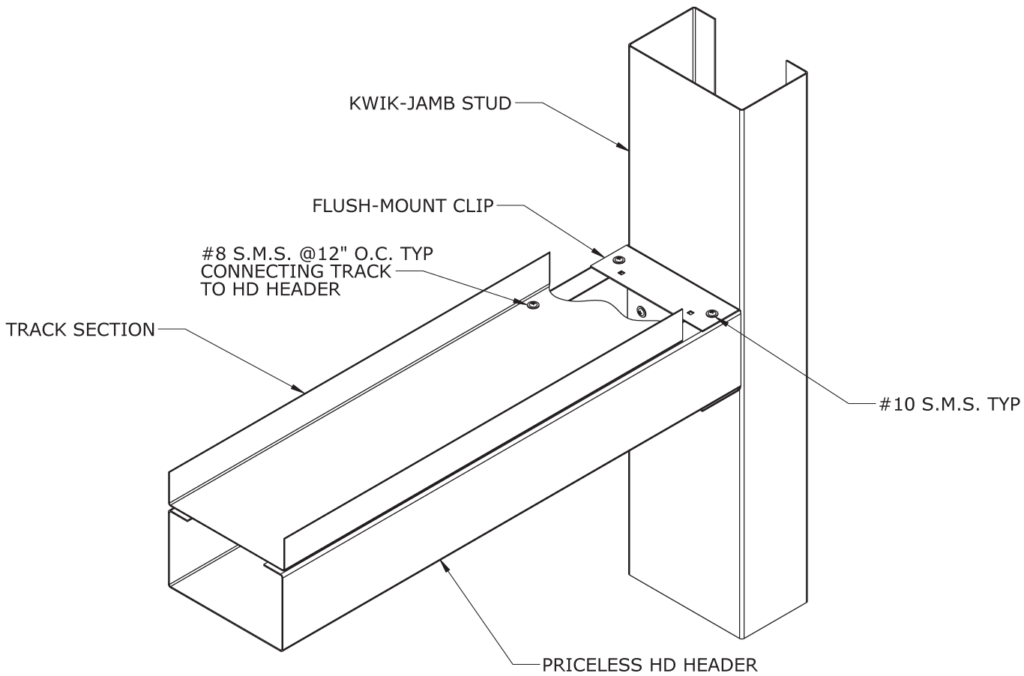

The Priceless Header and Kwik-Jamb System is an engineered header and jamb system that’s cut-to-length and ready to install, saving 70% to 80% in labor cost over traditional methods.
- Offers a revolutionary solution for header and jamb systems for door and window openings
- Provides a standard solution to the many problems associated with traditional headers and jambs that have troubled architects, engineers, contractors, and inspectors for decades
- Standardizes the system for exterior and interior openings
- Creates simplicity for the architect, engineer, and contractor
Features & Benefits
- Reduces labor cost by 70% to 80%
- Third party certified allowable clip loads
- Includes section property tables
- Typical CAD details for windows and doors
- Easy-to-use member selection tables and software
- Pre-cut engineered assembly, reducing waste
- Provided flush mount clip for easy connections to Kwik-Jamb
- No cutting of stud flanges or welding required
Crippler Clip Quantity / Order Information
Interior Crippler
| Part No. | Width | Qty / Bucket | Lbs / Bucket |
|---|---|---|---|
| 362CPLR-33EQD | 3 ⅝” | 200 | 15 |
| 400CPLR-33EQD | 4″ | 200 | 17 |
| 550CPLR-33EQD | 5 ½” | 200 | 24 |
| 600CPLR-33EQD | 6″ | 200 | 26 |
Exterior Crippler
| Part No. | Header Width (in) | Qty / Bucket | Lbs / Bucket |
|---|---|---|---|
| 362CPLR-43EQS | 3 ⅝” | 200 | 27 |
| 400CPLR-43EQS | 4″ | 100 | 15 |
| 550CPLR-43EQS | 5 ½” | 100 | 21 |
| 600CPLR-43EQS | 6″ | 100 | 23 |
| 800CPLR-43EQS | 8″ | 100 | 31 |
