FA

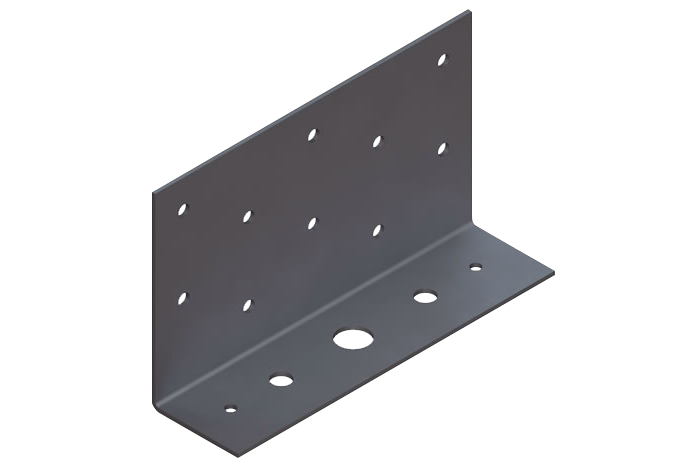

Secure Floor Anchor Clip

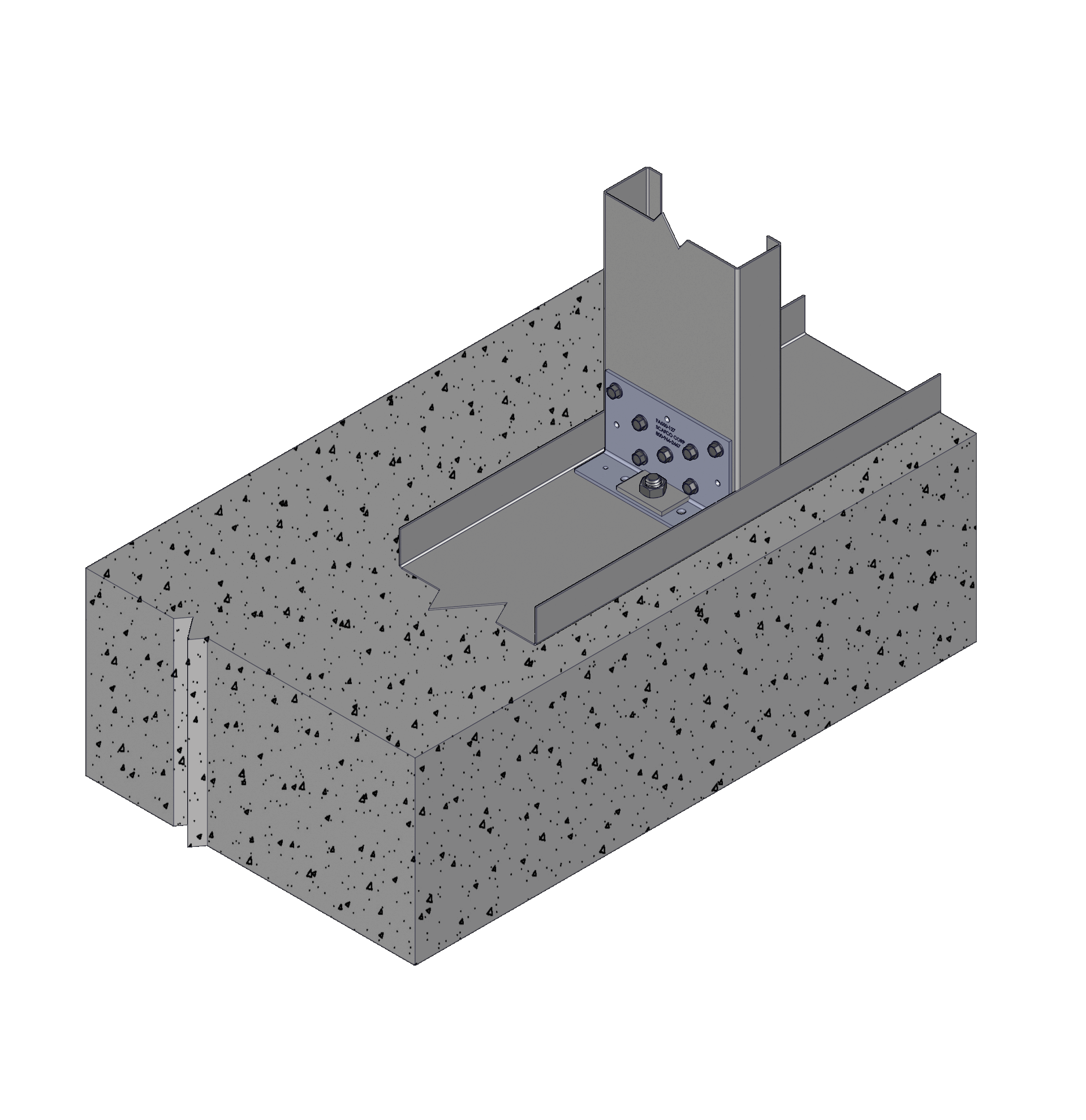

The secure floor anchor clip (FA) connects a wall stud to the floor and provides a secure connection through the use of a 90° angle that is designed to resist torsional, horizontal, and vertical loads. It is provided in 68 mil or 118 mil thickness to meet any design criteria and comes with pre-punched guide holes in each leg for superior installation efficiency. The FA may be attached to the structure with either an approved fastener or a weld, depending on the material properties of the structure and the proposed design.
Features
- Available in 68 mil and 118 mil
- Variety of lengths available
- Pre-punched guide holes

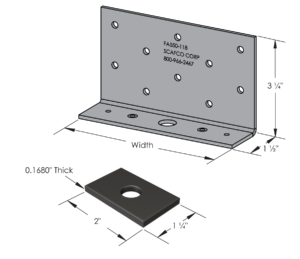

- Optional plate washer for heavy duty applications
Quantity / Order Information
| Model No. | Material Thickness | Width | Qty /Bucket | Lbs /Bucket | |
|---|---|---|---|---|---|
| Width | Gauge | ||||
| FA337-68 | 68 | 14 | 3 ⅜” | 100 | 31 |
| FA550-68 | 68 | 14 | 5 ½” | 50 | 26 |
| FA750-68 | 68 | 14 | 7 ½” | 50 | 35 |
| FA950-68 | 68 | 14 | 9 ½” | 50 | 44 |
| FA1150-68 | 68 | 14 | 11 ½” | 50 | 53 |
| FA337-118 | 118 | 10 | 3 ⅜” | 50 | 29 |
| FA550-118 | 118 | 10 | 5 ½” | 50 | 47 |
| FA750-118 | 118 | 10 | 7 ½” | 35 | 45 |
| FA950-118 | 118 | 10 | 9 ½” | 25 | 41 |
| FA1150-118 | 118 | 10 | 11 ½” | 25 | 50 |
