BC
Secure Bridge Clip

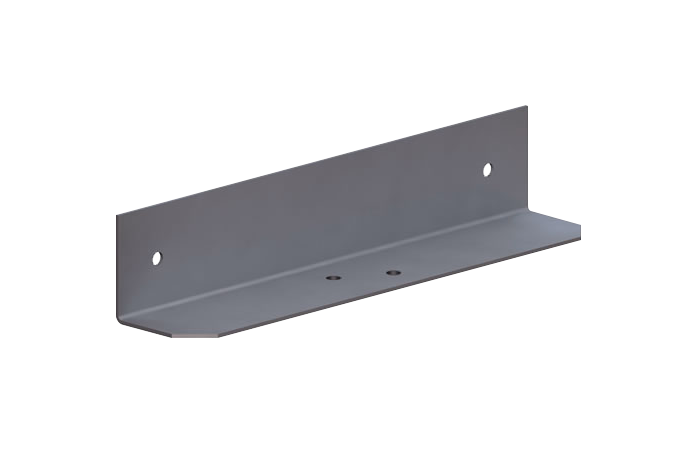

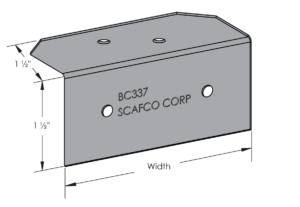

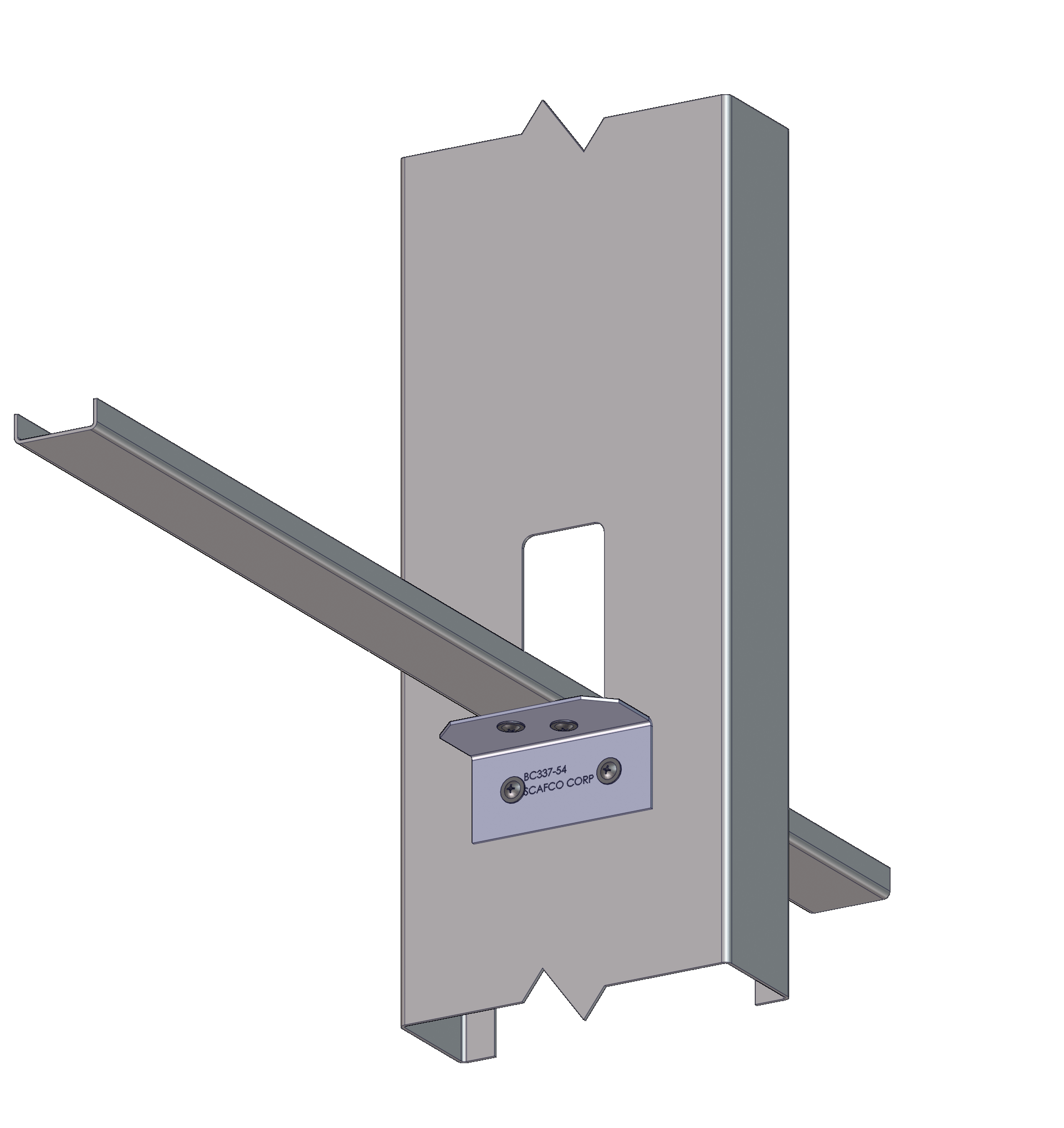

The secure clip (BC) secures the CRC (Cold Rolled Channel) to the stud, resisting lateral movement and twisting of studs in a wall assembly. Pre-punched guide holes are provided in a specific layout accommodating the CRC and stud attachments for superior strength and installation efficiency.
Chamfered corners on one leg are cut for attachment needed for inside the stud cavity. Secure clips (BC) are packaged in rugged buckets for easy handling on the job site.
Features
- Pre-punched guide holes
- No welding or cutting scrap material required
- Loads based on #10 screws
- Screws are provided
- Replaces the expensive traditional method of bracing
Quantity / Order Information
| Model No. | Material Thickness | Length | Qty /Bucket | Lbs /Bucket | |
|---|---|---|---|---|---|
| Mils | Gauge | ||||
| BC237 | 33 | 20 | 2 ⅜” | 250 | 17 |
| BC337 | 33 | 20 | 3 ⅜” | 250 | 24 |
| BC575 | 54 | 16 | 5 ¾” | 150 | 40 |
| BC775 | 54 | 16 | 7 ¾” | 100 | 36 |
