AS

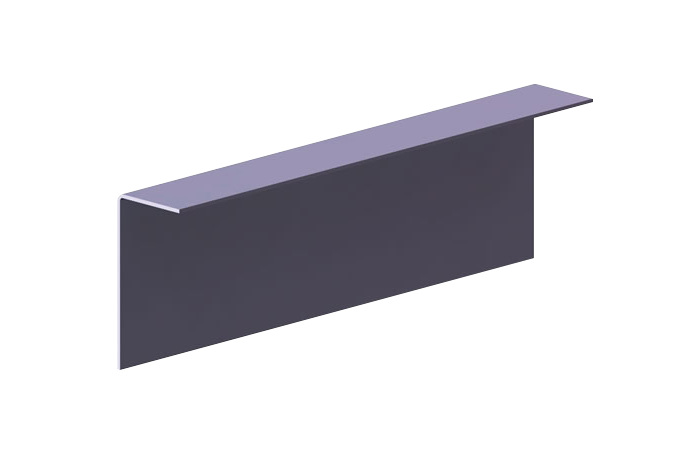

Load-Bearing Secure Strut

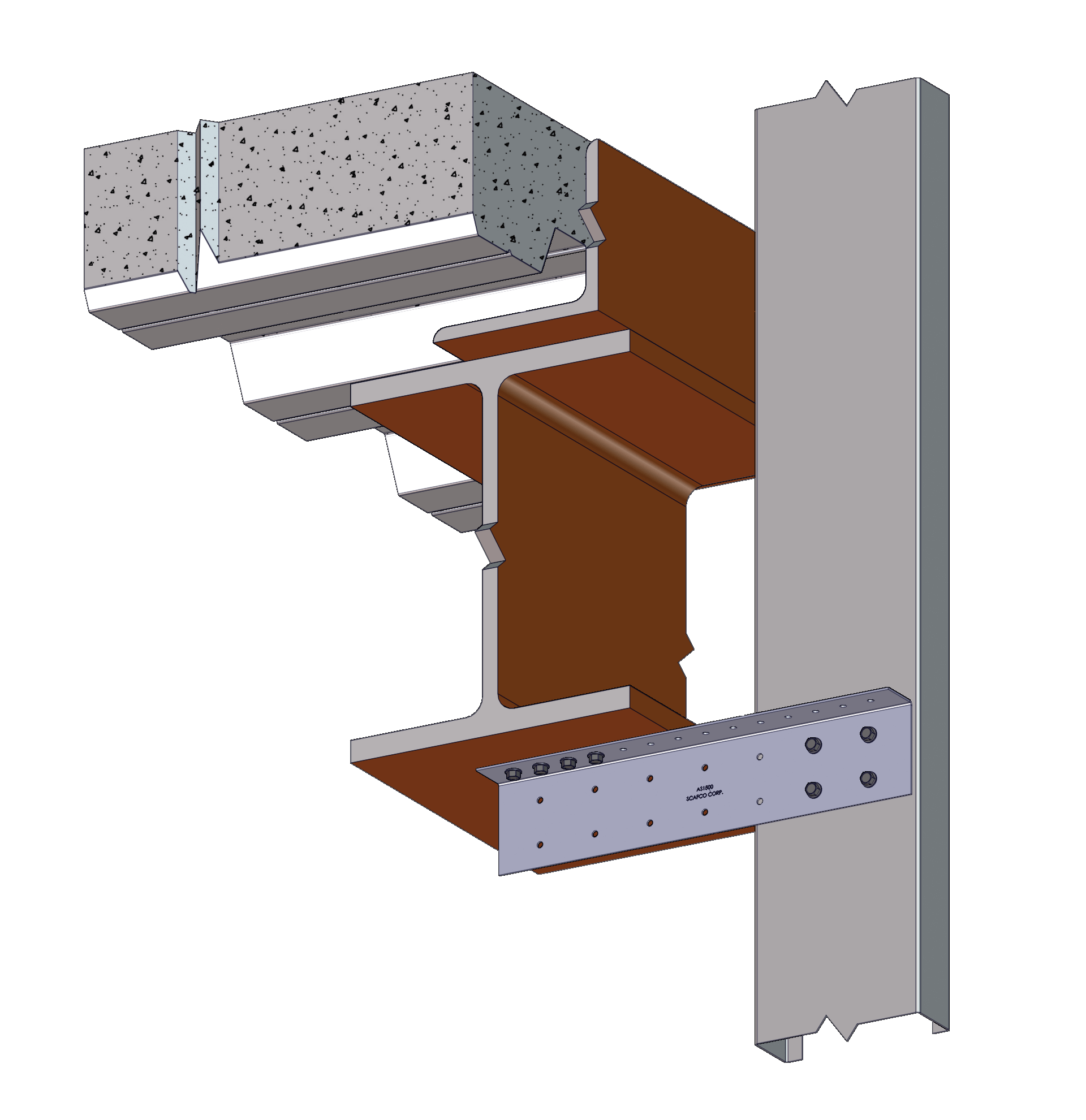

The load-bearing secure strut (AS) is used in various applications, but most commonly to connect an exterior wall stud that bypasses the building structure through the use of a 90° angle strut. The AS is designed to resist compression loads and axial tension. It may be attached to the structure with either an approved fastener or a weld, depending on the material properties of the structure and the proposed design.
Features
- Variety of lengths available
- Transfers horizontal load into structure
- Maintains lateral rigidity
- Eliminates bridging within 12″ of support connection
Quantity / Order Information

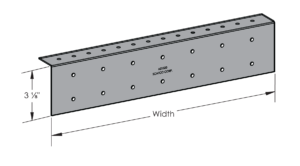

| Model No. | Width | Qty /Bucket | Lbs /Bucket |
|---|---|---|---|
| AS800 | 8” | 50 | 36 |
| AS1000 | 10” | 50 | 45 |
| AS1200 | 12” | 50 | 54 |
| AS1500 | 15” | – | – |
| AS2000 | 20” | – | – |
| AS2400 | 24” | – | – |
