AC
Bypass Slab Secure Clip

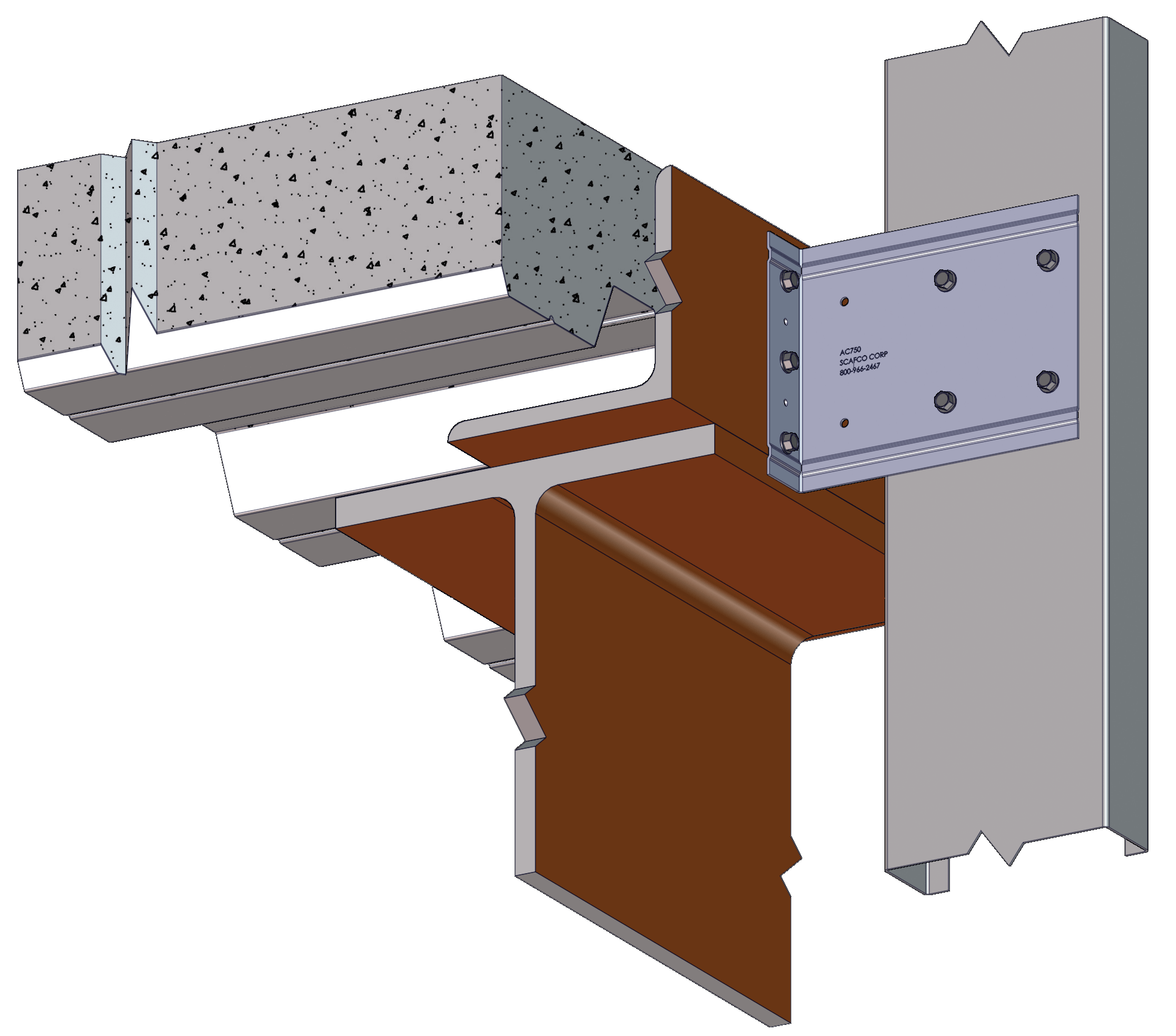

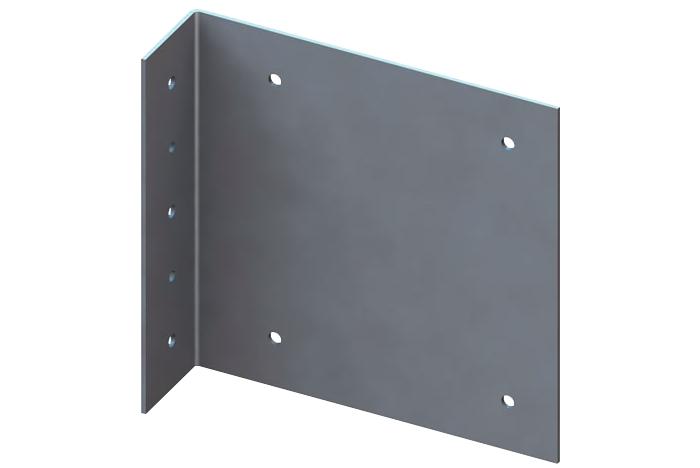

The bypass slab secure clip (AC) connects an exterior wall stud that bypasses the building structure through the use of a 90° angle. It is designed to resist horizontal and vertical loads, and has pre-punched guide holes in each leg for fast and easy installation. The AC may be attached to the structure with either an approved fastener or a weld, depending on the material properties of the structure and the proposed design.
Features
- Pre-punched guide holes for quick attachment to structure and stud
- Available in a variety of different lengths for all requirements and construction tolerances
- Replaces the expensive traditional method of bracing
- Produced from thicker steel to improve welded attachments
Quantity / Order Information

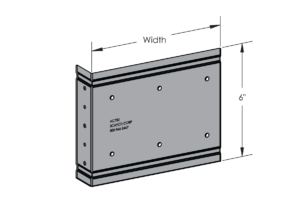

| Part No. | Width | Qty /Bucket | Lbs /Bucket |
|---|---|---|---|
| AC250 | 2 ½” | 50 | 23 |
| AC350 | 3 ½” | 50 | 29 |
| AC550 | 5 ½” | 50 | 41 |
| AC750 | 7 ½” | 50 | 52 |
| AC950 | 9 ½” | 35 | 45 |
Note: Additional lengths available upon request.
